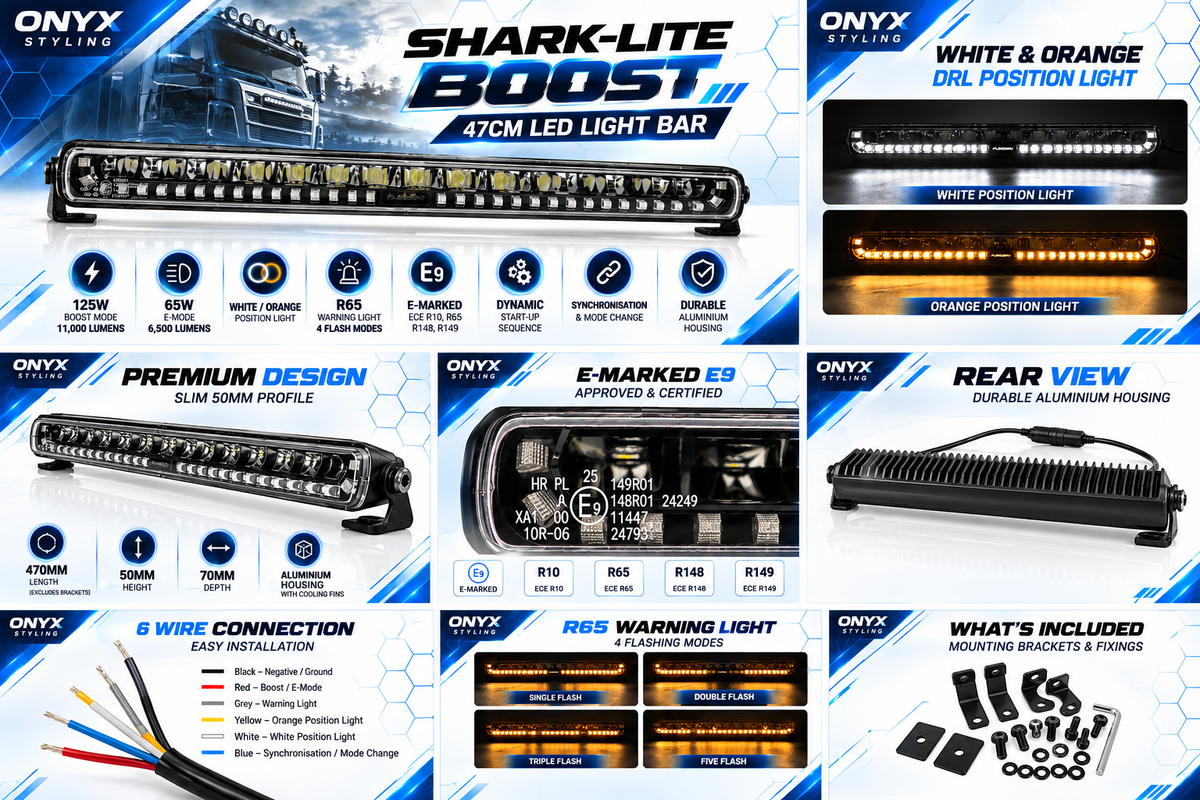

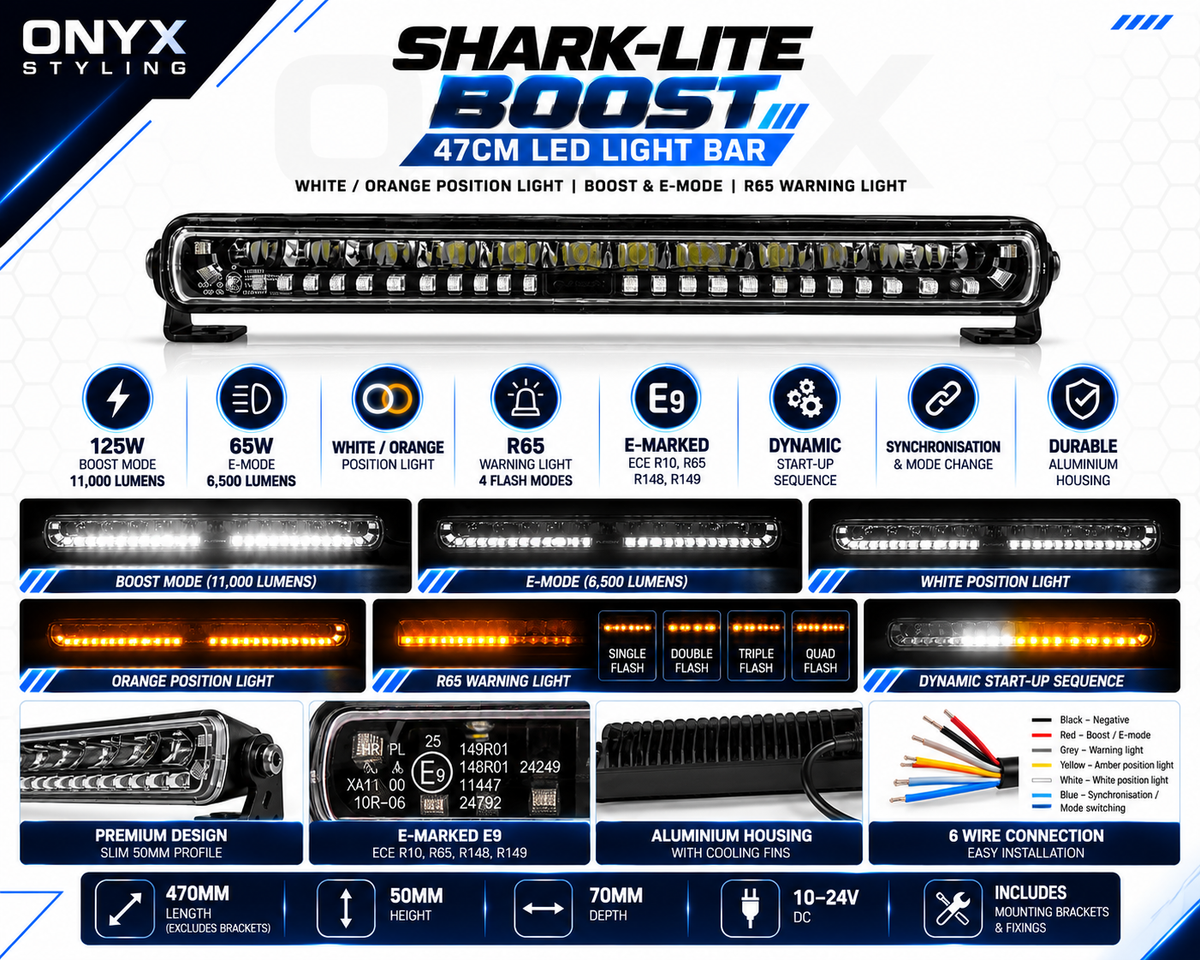

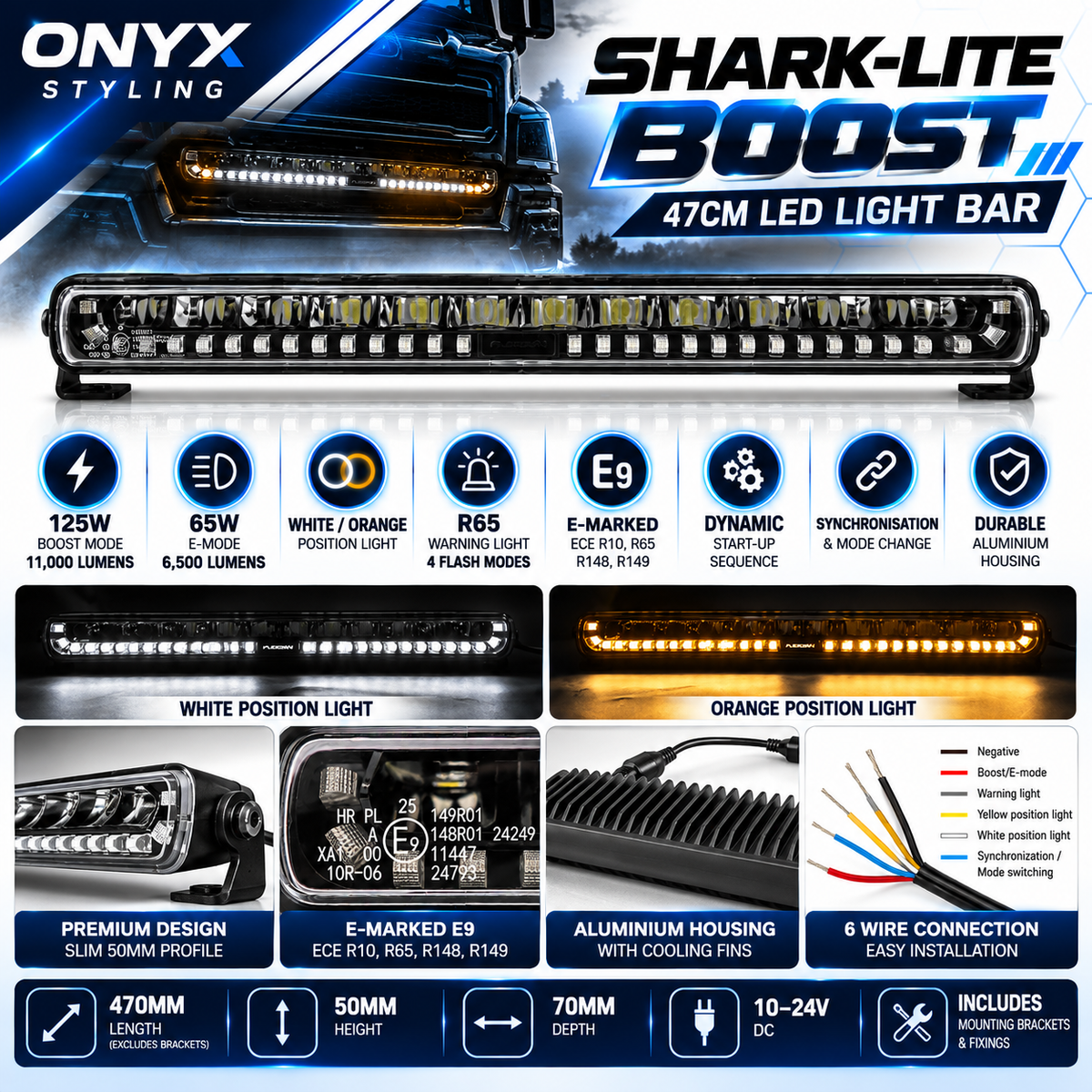

SHARK-LITE BOOST 47cm LED Light Bar – 125W

Powerful Driving Lights | White & Orange DRL | R65 Warning Light | E-Marked

Take your vehicle lighting to the next level with the SHARK-LITE BOOST 47cm LED Light Bar, a premium multifunctional lighting solution combining exceptional driving light performance, distinctive white and orange position lighting, and an integrated R65-certified emergency warning function.

Producing an impressive 11,000 lumens in 125W Boost Mode, this high-performance LED light bar delivers powerful illumination while offering a lower-powered E-Mode for additional flexibility.

Designed for trucks, agricultural machinery, 4x4 vehicles, vans, recovery vehicles and commercial applications, the SHARK-LITE BOOST combines modern styling with outstanding versatility.

Key Features

• 125W BOOST MODE: Delivers an impressive 11,000 lumens of powerful LED illumination.

• 65W E-MODE: Alternative lighting mode producing 6,500 lumens.

• WHITE & ORANGE DRL: Integrated dual-colour position lighting for a distinctive appearance.

• R65 WARNING LIGHT: Built-in emergency warning function with four selectable flashing patterns.

• DYNAMIC START-UP: Eye-catching sequential start-up lighting effect.

• SYNCHRONISATION FUNCTION: Supports synchronisation and switching between warning light patterns.

• E-MARKED E9: Marked with E9 approval and certified to ECE R10, R65, R148 and R149.

• DURABLE ALUMINIUM HOUSING: Robust construction with rear cooling fins for efficient heat dissipation.

• COMPACT DESIGN: Slim 50mm-high profile suitable for a wide range of vehicle installations.

• 10–24V COMPATIBILITY: Suitable for a variety of 12V and 24V vehicle electrical systems.

Dual Power Driving Light Modes

BOOST MODE – 125W / 11,000 Lumens

Maximum lighting performance for applications requiring powerful forward illumination.

E-MODE – 65W / 6,500 Lumens

A lower-powered operating mode providing an alternative level of illumination.

Integrated White & Orange Position Lighting

The SHARK-LITE BOOST features integrated white and orange LED position lighting, operated through separate electrical connections.

This allows the light bar to provide a distinctive lighting appearance alongside its main driving light functions.

R65 Emergency Warning Light – 4 Flashing Patterns

The integrated warning light offers four selectable flashing patterns:

1. Single Flash – Single sequential flash

2. Double Flash – Two consecutive flashes

3. Triple Flash – Three consecutive flashes

4. Five Flash – Five consecutive flashes

The warning function also supports synchronisation and mode switching, making it particularly useful for appropriately equipped recovery, maintenance and specialist vehicles.

Technical Specifications

Please note: The 470mm measurement refers to the light bar body only and excludes the mounting brackets.

Wiring Connections

• Black Wire: Negative / Ground

• Red Wire: Main Driving Light – Boost / E-Mode

• Grey Wire: Emergency Warning Light

• Yellow Wire: Orange Position Light

• White Wire: White Position Light

• Blue Wire: Synchronisation / Mode Selection

Professional installation is recommended to ensure correct wiring and operation of all lighting functions.

Suitable Applications

Ideal for a wide range of vehicles, including:

• Trucks & HGVs

• Agricultural Tractors & Machinery

• 4x4s & Off-Road Vehicles

• Vans & Commercial Vehicles

• Recovery & Roadside Assistance Vehicles

• Construction & Plant Machinery

• Specialist & Utility Vehicles

Important Information

Although this product carries E-marking and ECE approvals, legal use depends on the lighting function, installation position, wiring and vehicle application.

The R65 warning function must only be used where legally permitted. Approval markings do not automatically authorise warning-light use on public roads.

SHARK-LITE BOOST – Serious Lighting Performance. Premium Styling. Built for Demanding Applications.

Available from ONYX Styling.
