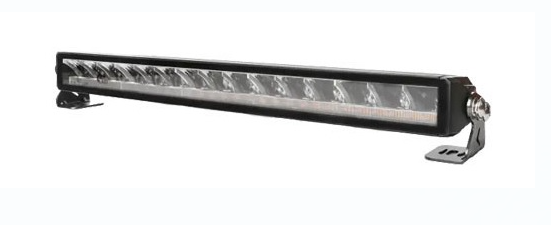

55cm 80W Multifunction LED Light Bar – White & Amber DRL

80W Driving Light | 3,800 Lumens | White & Amber Position Lights | 4-Mode R65 Warning Light | E-Marked

Upgrade your vehicle lighting with our 55cm Multifunction LED Light Bar, combining powerful driving illumination, dual-colour position lighting and an integrated R65 emergency warning function in one sleek, compact unit.

Delivering 3,800 lumens of LED illumination, this versatile 4-in-1 light bar is ideal for trucks, agricultural machinery, 4x4s, commercial vehicles, recovery vehicles and specialist equipment.

Featuring an innovative indirect LED lighting design, the light bar uses high-efficiency chrome reflectors and a transparent lens to maximise light output while maintaining a distinctive modern appearance.

With integrated white and amber position lighting, four emergency warning flash patterns and ECE certification, this light bar offers excellent functionality for a wide range of vehicle applications.

Key Features

• 80W LED Driving Light: Produces 3,800 lumens of powerful forward illumination.

• 55cm Compact Design: Slim, modern light bar suitable for various mounting positions.

• White Position Light: Integrated white LED lighting for a clean, modern appearance.

• Amber Position Light: Alternative orange LED position lighting.

• R65 Emergency Warning Light: Built-in warning function with four selectable flashing patterns.

• Indirect LED Technology: High-efficiency chrome reflectors designed to minimise light loss.

• Temperature Control System: Built-in overheating protection for reliable operation.

• 10–30V DC Compatibility: Suitable for both 12V and 24V vehicle electrical systems.

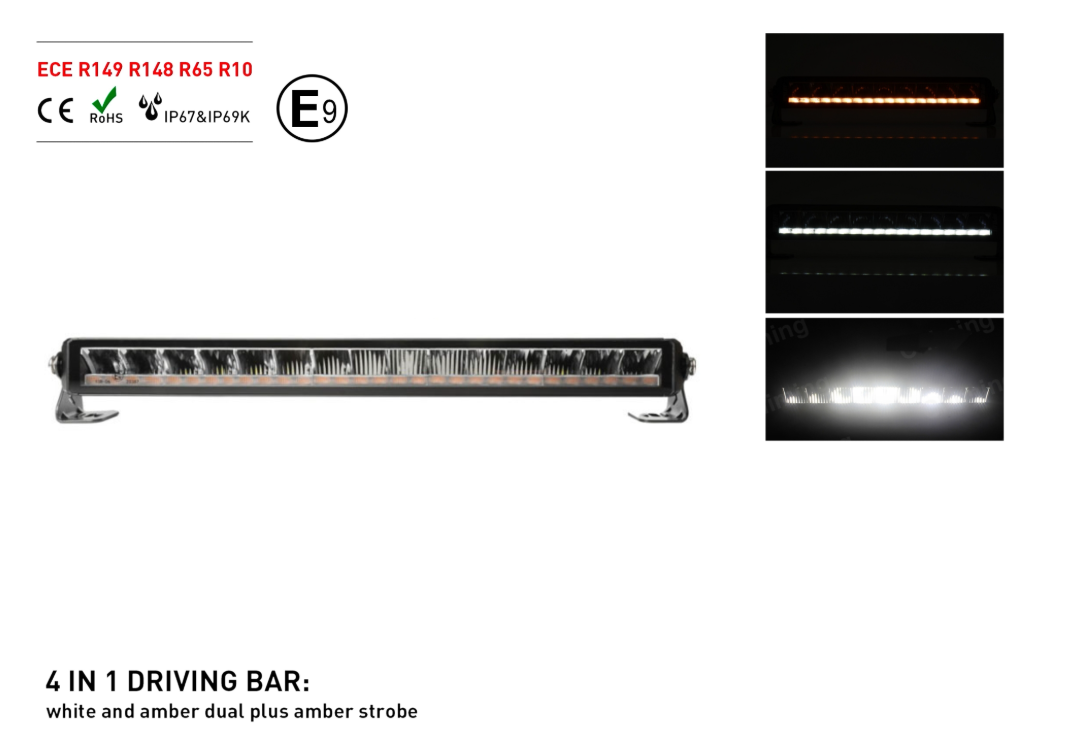

• ECE Certified: ECE R10, R65, R148 and R149 approvals.

• IP67/IP69K Protection: Designed to withstand water, dust and demanding working environments.

• Durable Construction: Built for everyday commercial and agricultural applications.

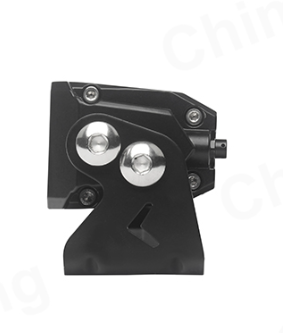

• Adjustable Mounting Brackets: Flexible installation on suitable vehicle surfaces.

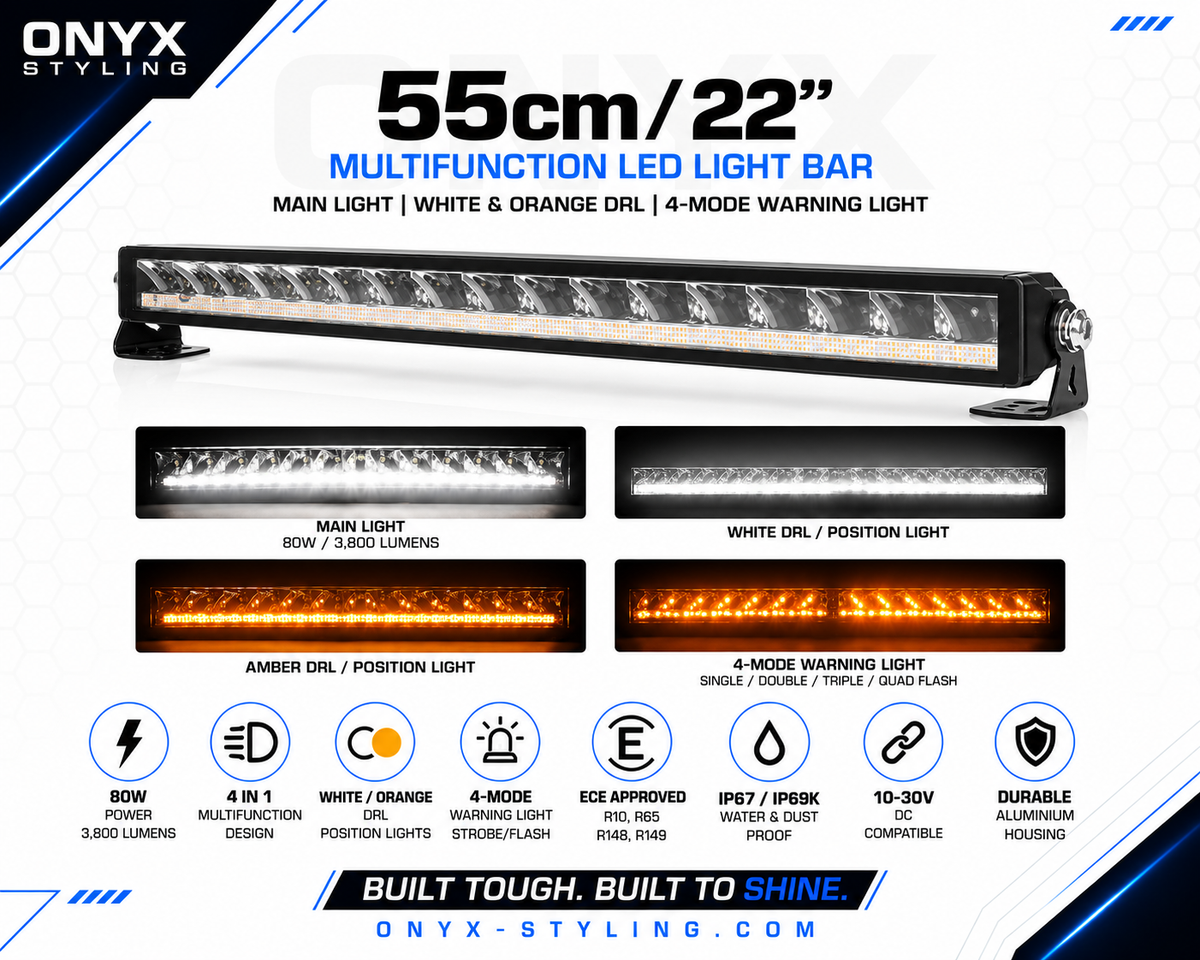

4-in-1 Multifunction Lighting

1. Powerful Main Driving Light

The main LED driving light produces 80W of power and 3,800 lumens, providing additional forward illumination for suitable driving and working applications.

2. White LED Position Light

Integrated white LED position lighting creates a distinctive, modern appearance and provides an additional lighting function.

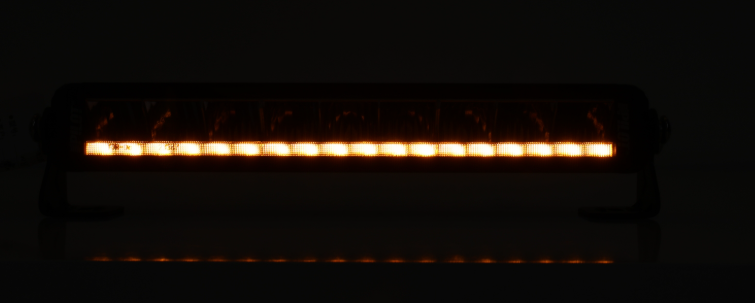

3. Amber LED Position Light

The amber position light offers an alternative lighting colour, particularly popular for trucks, tractors and commercial vehicles.

4. R65 Emergency Warning Light

The integrated warning system features four selectable flashing patterns:

1. Single Flash

2. Double Flash

3. Triple Flash

4. Quadruple Flash

Ideal for appropriately authorised recovery, maintenance, utility and specialist vehicles.

Technical Specifications

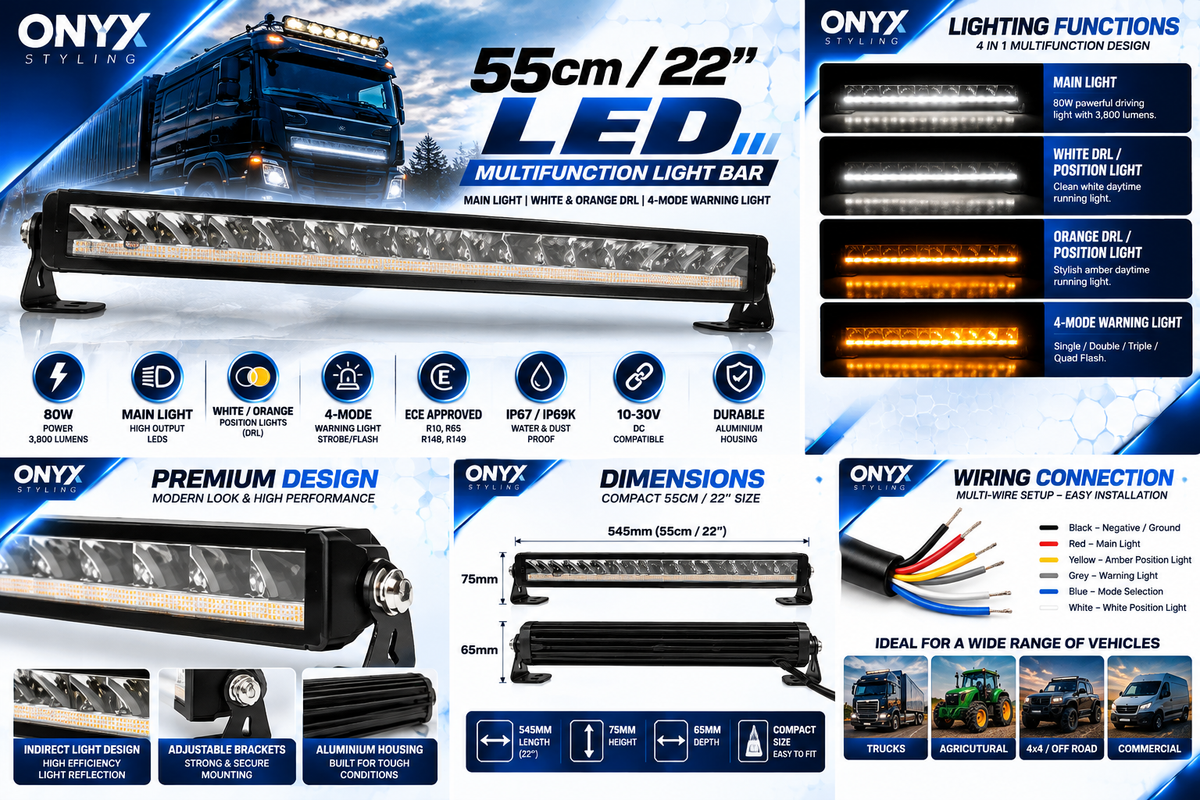

Wiring Connections

The light bar features six colour-coded wires:

• Black: Negative / Ground

• Red: Main Driving Light

• Yellow: Amber Position Light

• Grey: Emergency Warning / Flashing Light

• Blue: Warning Light Mode Selection

• White: White Position Light

The main driving light and emergency warning function can be operated together when correctly wired according to the manufacturer's instructions.

Professional installation is recommended.

Suitable Vehicle Applications

Ideal for a wide range of vehicles, including:

• Trucks & HGVs

• Agricultural Tractors & Machinery

• 4x4s & Off-Road Vehicles

• Vans & Commercial Vehicles

• Recovery & Roadside Assistance Vehicles

• Construction & Plant Machinery

• Specialist & Utility Vehicles

Built for Demanding Conditions

Designed for professional vehicle applications, this multifunction LED light bar combines durable construction with efficient lighting technology.

The IP67/IP69K protection ratings provide resistance to dust, water and high-pressure cleaning conditions, while the integrated temperature control system helps protect the LEDs against overheating.

Its compact dimensions and adjustable mounting brackets make installation practical across a wide range of vehicle types.

Important Information

Although this light bar carries ECE approvals, legal road use depends on the installation position, vehicle type, wiring and permitted use of each lighting function.

The R65 emergency warning function must only be operated where legally authorised.

White and amber position lighting must also comply with applicable vehicle lighting regulations.
